X Ray Equipment

InnoVet Classic

Ideal for the budget-minded and/or floor space restricted facility. Since 1995, the InnoVet Classic has been the #1 selling veterinarian x-ray machine in the U.S. Over 3,000 InnoVet Classic’s currently satisfy the general radiographic needs of budget minded or space-restricted practices. The Classic features a full-size table top, a tilt-out control, and a 300 mA / 125 kVp generator all packaged in the industry’s smallest floor space requirement of 28” x 53”.

InnoVet Select

Customize this InnoVet to your exact radiographic and budgetary needs. The InnoVet Select is a special version of the Classic which allows for customization by the end user. By selecting from over 15 options, you may tailor the system to meet your specific needs and at the same time avoid paying for unwanted features. In recent years, the average InnoVet Select featured 5.3 options and sold for a price $2,900 less than a fully-loaded system. Examples of popular InnoVet Select options include:

• A 300 mA high frequency generator that is 30% more powerful than standard frequency.
• An upgrade of the 300 mA high frequency generator to an even more powerful 500mA.
• A 2-way or 4-way float top table
• One or two easy – access cassette bins.
• The “no-hands” collimator system.
• An anatomically programmed console.

InnoVet Select HF

Finally powerful high frequency technology comes to Veterinary Medicine. The original InnoVet™, by Summit Industries, revolutionized veterinary radiography by integrating the x-ray generator, table and tubestand into one small, space-saving design. Now, Summit has skillfully integrated a High Frequency generator and created the InnoVet™ Select HF.

The InnoVet™ Select HF produces x-ray images with improved resolution and contrast while affording the operator fast, easy technique selection. Compared to conventional 60 Hertz generators, HF technology produces more x-ray in less time. Exposure time reduction of up to 50% can minimize image blur caused by motion. By producing a more effective kV, HF technology improves penetration power, allowing for lower kV settings. The resulting scatter radiation is minimized, eliminating gray, fogged films. The InnoVet™ Select HF has all the distinctive features and options that made the Select the #1 veterinary x-ray system in the world.

InnoVet Specialist

The InnoVet Specialist system recognizes the variety of needs that large busy practices or a specialty practice might have. By utilizing Summits vast line of human medical systems, any possible need can be satisfied including:

• Tables with large 30” x 76” floating tops.
• Tables that can support a 650 lb. animal.
• Tables that can be raised and lowered by an electric motor.
• Tubestands that have several axis of motion for that difficult orthopedic procedure.
• Tubestands that ceiling mount to free more floor space.
• Generators that deliver 100% more penetrating power.

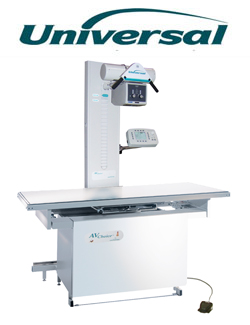

UNIVERSAL AVCHOICE

AVChoice systems are equipped with an integrated tube stand with variable SID and an anatomically programmed, high frequency generator providing a cost effective and time saving solution for the veterinarian who seeks maximum capability in minimal space.

Benefits

Key benefits of the Universal AVChoice include:

• Control console on swing out arm mounts to tube stand
• Exposure footswitch
• Available with a stationary, 2-way or 4-way float top table
